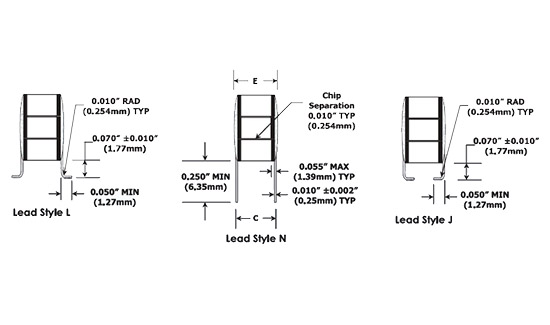

CalRamic CRT-0026

All Exxelia CalRamic products continue to be proudly manufactured in the USA at our facility in Reno, Nevada. This ensures full compliance with domestic sourcing requirements for US defense and aerospace applications.

Exxelia CalRamic Technologies LLC, is a U.S.-based High Voltage Ceramic Capacitor manufacturer with over 30 years’ experience.  Our team focuses on producing exceptional quality capacitors by using superior quality materials with a highly trained team.

Exxelia CalRamic produces a variety of components in a multitude of configurations ranging from 500VDC to 80KVDC. Our Lean Manufacturing principles provide shorter lead times, rapid prototype turnaround deliveries, multiple design derivations for your custom application, and a variety of dielectric types depending on your specific application.

Our quality control system conforms to and exceeds ISO 9001-2015 requirements.  We manufacture capacitors suitable for a wide range of applications like: Geothermal, Commercial/Industrial, Medical, Commercial Aerospace, Ground Based Military, Military Aerospace and even Hi-Reliability Space Satellite Systems.  Our manufacturing design guidelines, material choices, and precision controls result in performance-based High Voltage Capacitors for your specific application.

The Exxelia CalRamic Technologies Leadership has created a culture that encourages personal growth and success for each team member, while building a We Succeed as a Team environment.  In addition, we look for opportunities to support our local community through non-profit involvement and Exxelia CalRamic Team events throughout the year.

We are committed to the best approaches and practices that limit environmental impact, and an extensive safety and awareness training program that limits hazardous exposures to our Team Members.

Exxelia CalRamic Technologies LLC is fully committed to our clients’ success.  On our website we offer a full ceramic capacitor educational library with Application Notes and Product Training Modules that help our clients understand the technical nature of High Voltage Ceramic Capacitors.

Exxelia CalRamic specializes in High-Voltage Ceramic Capacitors. The core catalog includes:

• Multilayer Ceramic Capacitors (MLCC): Radial leaded and surface mount.
• High-Voltage Leaded Disc Capacitors.
• SMPS Capacitors: High-voltage Switch Mode Power Supply ceramic capacitors.
• High-Temperature Capacitors: Specialized components rated for up to 200°C (ideal for downhole and geothermal applications).

Exxelia CalRamic capacitors can be screened based on MIL-PRF-49467 standards. Available testing options include:

• Full Group A and Group B Screening (including up to 4,000 hours of fully rated life testing).
• Partial Discharge Screening.
• Ultrasonic C-SAM Inspection.

• MOQ: There are no minimum order quantities; we support everything from single-prototype units to large production runs.
• Lead Times: Standard lead times range from 10 to 14 weeks. However, a "Fast Track" expedited option is available for urgent requirements, reducing lead times to as little as 2 to 3 weeks. Same-day shipping is also available for in-stock inventory.

Exxelia CalRamic has a variety of High Voltage Ceramic Capacitor inventory that are in-stock and can ship same-day upon receipt of your order. If you are looking for prototype quantities, or initial LRIP quantities, contact us for part specific availability.  We can sometimes ship the same day ARO.

Standard ceramic capacitor lead times typically range from 8 to 14 weeks, depending on the product type, configuration, and manufacturing requirements. Leaded and coated  disc capacitors and leaded and coated multilayer capacitors may have different production timelines. Space-level capacitors, enhanced testing, and additional screening requirements may extend lead times slightly. Exxelia-CalRamic is committed to dependable delivery performance and has a strong track record of meeting agreed upon schedules.

Exxelia-CalRamic does not impose standard minimum order quantity requirements. We support a wide range of customer needs, from single-capacitor requirements for engineering  evaluation or prototype development to production quantities in the thousands. Order quantities are evaluated based on the customer’s application, technical requirements and production schedule.

Custom designs and catalog product modifications are 40% of what we manufacture to help our clients in their specific High Voltage requirements.  Sometimes this can be done at no additional cost to the client.

No, Exxelia CalRamic Technologies does not obsolete products that have been designed for a client.  It is our objective to maintain our ceramic capacitor product mix and supply for our clients without discontinuation.

Exxelia-CalRamic offers a range of screening options for high-voltage ceramic capacitors, using MIL-PRF-49467 as a reference basis where applicable. Available screening may include full Group A, Partial Discharge, and additional electrical or environmental testing based on customer requirements. When more extensive qualification is needed, Group B screening can also be supported, including fully rated life testing for up to 4,000 hours. Ultrasonic C-SAM screening is available when required for enhanced inspection. CalRamic can also incorporate many customer-specific screening specifications into the manufacturing and test process. For detailed options, pricing, and lead-time impact, please contact Exxelia-CalRamic’s technical team.

Yes, Exxelia CalRamic has the ability, in most cases, to “FAST TRACK” orders when required, and sometimes lead times can be lowered to as little as 2-3 weeks ARO.  This is offered at an additional cost and one of Exxelia CalRamic’ s team members can assist with setting up your expedited order.

Exxelia CalRamic has an extensive Library database of application notes encompassing all aspects of high voltage ceramic capacitors. In this database you can find detailed information around Soldering Multi-Layer Capacitors AN101, Wave Soldering Multi-Layer Capacitors AN102, Soldering Rework Methods AN108 and Soldering Methods for SMPS style capacitors AN116. All these application notes and many more can be found on our Application Notes page and if more information is needed don’t hesitate to contact one of our technical team members.

Exxelia-CalRamic boasts a comprehensive technical team, with their entire manufacturing facility based in Reno, Nevada. For more than 25 years, Exxelia-CalRamic has delivered same-day responses, top-quality products, and support to ensure shared success with clients. Their aim is to offer the best experience and products available in the market.

Yes. Exxelia-CalRamic maintains an extensive technical brochure and application note database covering a broad range of topics related to high-voltage ceramic capacitors. Available resources include guidance on soldering multilayer capacitors, wave soldering, solder rework methods, and soldering methods for SMPS-style capacitors, including application notes such as AN101, AN102, AN108, and AN116. These documents, along with additional technical resources, are available through Exxelia-CalRamic’s Application Notes page. If further assistance is needed, Exxelia-CalRamic’s technical team is available to provide additional guidance and support.

Yes. In many cases, Exxelia-CalRamic can support expedited production through a FastTrack order process when customer schedules require accelerated delivery.  Depending on the product, configuration, material availability and screening requirements, lead times may be reduced to as little as 2 to 3 weeks after after orders are received. Expedited production is subject to review and may involve additional costs. An Exxelia-CalRamic team member can assist with evaluating feasibility, confirming the revised schedule, and coordinating the expedited order process.

No. Exxelia-CalRamic Technologies does not routinely obsolete products that have been designed for or qualified by a customer. Our objective is to maintain long-term product availability and provide consistent support for customer-specific ceramic capacitor solutions. This commitment helps customers protect qualified designs, maintain continuity of supply, and avoid unnecessary redesign or requalification efforts.

Exxelia-CalRamic maintains inventory for a range of high-voltage ceramic capacitors, with select products available for same-day shipment upon receipt of order.  Availability varies by part number, quantity, and current demand. For prototype builds, engineering samples, or initial low-rate initial production (LRIP) requirements, please contact Exxelia-CalRamic directly so our team can confirm part-specific stock status, lead time, and shipment options. In many cases, available inventory can ship the same day after receipt of order.

Yes. Exxelia-CalRamic offers customized ceramic capacitor capabilities, including custom designs and modifications to catalog products. Custom and modified products represent approximately 40% of our manufacturing activity and are developed to support customers with demanding high-voltage application requirements. Depending on the scope of the modification and the technical requirements involved, certain customizations may be available with little or no additional cost.
