Why capacitors do what they do: A deep dive into Real-World performance

The fundamentals of capacitance

A capacitor is defined as a passive device that stores energy. In an ideal scenario, when one joule of energy is put into a capacitor, exactly one joule can be removed. This energy is stored within an electrostatic field.

However, hooking a power source up to a single conductive plate does not create a capacitor. An opposing plate is strictly required to create the electrostatic field that provides actual capacitance. At a subatomic level, capacitance generation relies on the fact that electrons repel each other. When electrons see a positive plate on the opposite side of a gap, they want to cross over and will bunch up in the attempt to reach the other side.

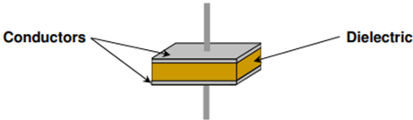

To increase the capacitance value of a design, engineers can manipulate three primary variables: increasing the plate area, decreasing the distance between the plates, or adding an insulator (a dielectric) between them. The mathematical relationship is expressed as C = KoK x (A/t).

No capacitor is perfect; all exhibit inherent losses. To understand how a capacitor will actually behave in a circuit, engineers must look at its equivalent circuit, which accounts for parasitic elements. Parasitics are unwanted properties that are either inherent to the chosen dielectric material or exist as a result of the construction design.

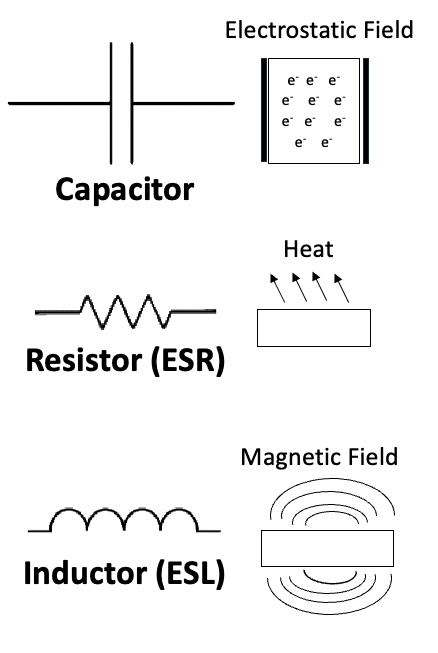

The equivalent circuit includes:

• C: The ideal Capacitance.
• ESR: Equivalent Series Resistance.
• Energy put into this resistor is converted to heat.
• ESL: Equivalent Series Inductance. Energy put into this inductor creates a magnetic field.
• DF: Dissipation Factor.
• IR: Insulation Resistance, which relates to leakage current.

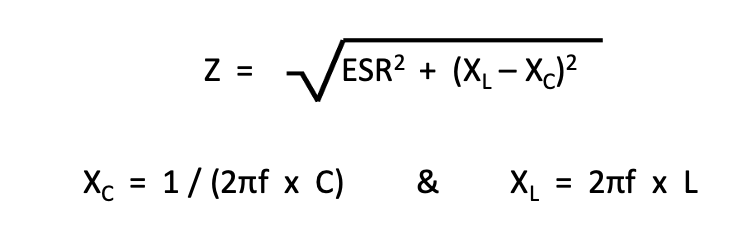

These parasitic properties drastically affect impedance, which is the total opposition to alternating current. At a specific threshold known as the resonance frequency, a capacitor stops behaving like a capacitor and begins to display inductive behavior. At this frequency, the capacitive reactance and inductive reactance cancel each other out, leaving the impedance equal to the ESR.

Thermal Losses and Dissipation Factor

When dealing with power electronics, heat is a major concern. DF and ESR are both loss characteristics that are directly proportional to each other. Simply stated, the Dissipation Factor represents the percentage of heat generated by the capacitor. For example, if a capacitor has a DF of 1% and it receives 100 joules of energy, 99 joules will be returned as usable energy, while 1 joule is lost and converted to heat.

Power Density vs. Energy Density (Batteries vs. Capacitors)

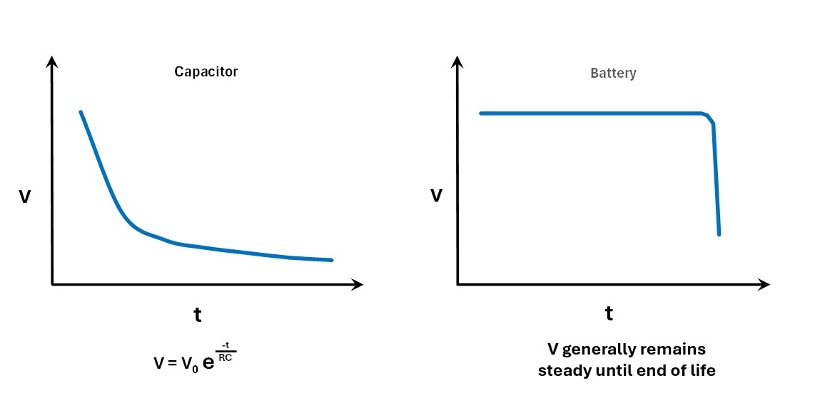

It is important to remember that a battery is not a capacitor, and a capacitor is not a battery. A battery relies on chemical reactions, whereas a capacitor is a passive device with no internal chemical reaction.

When looking at a Ragone Plot, the fundamental differences become clear: capacitors offer a much higher power density, meaning they are capable of delivering electrons rapidly. Conversely, batteries offer a much higher energy density, delivering electrons over a significantly more extended period of time.

Quality Control and Reliability

Because billions of capacitors are manufactured, identifying latent failures before deployment is crucial. Quality control relies heavily on testing Capacitance, DF/ESR, and IR.

A perfect, theoretical capacitor would exhibit infinite Insulation Resistance and zero values for DF and ESR. Even the best-built capacitors have some leakage current and ESR, but tracking these metrics reveals vital health data:

• Higher than expected DF or ESR is a bad sign, while lower is good.

• Lower than expected IR is a bad sign, while higher is good.

Even if a capacitor's readings technically fall within the specified limits and it appears to behave normally, DF, ESR, or IR readings that are out of standard population boundaries for that lot indicate a problem. Such anomalies may be indicative of an underlying issue, causing concern over the introduction of a latent failure condition into the end application.

Capacitors are an integral and essential component in nearly all aspects of today's technological world. Due to their unique characteristics—such as handling high peak currents and managing current that is 90 degrees out of phase with voltage—they are widely used for energy storage, pulse discharge, voltage stabilization, and frequency filtering. By understanding equivalent circuits and parasitics, electronic engineers can select the highly reliable, optimal capacitor for any demanding application.
